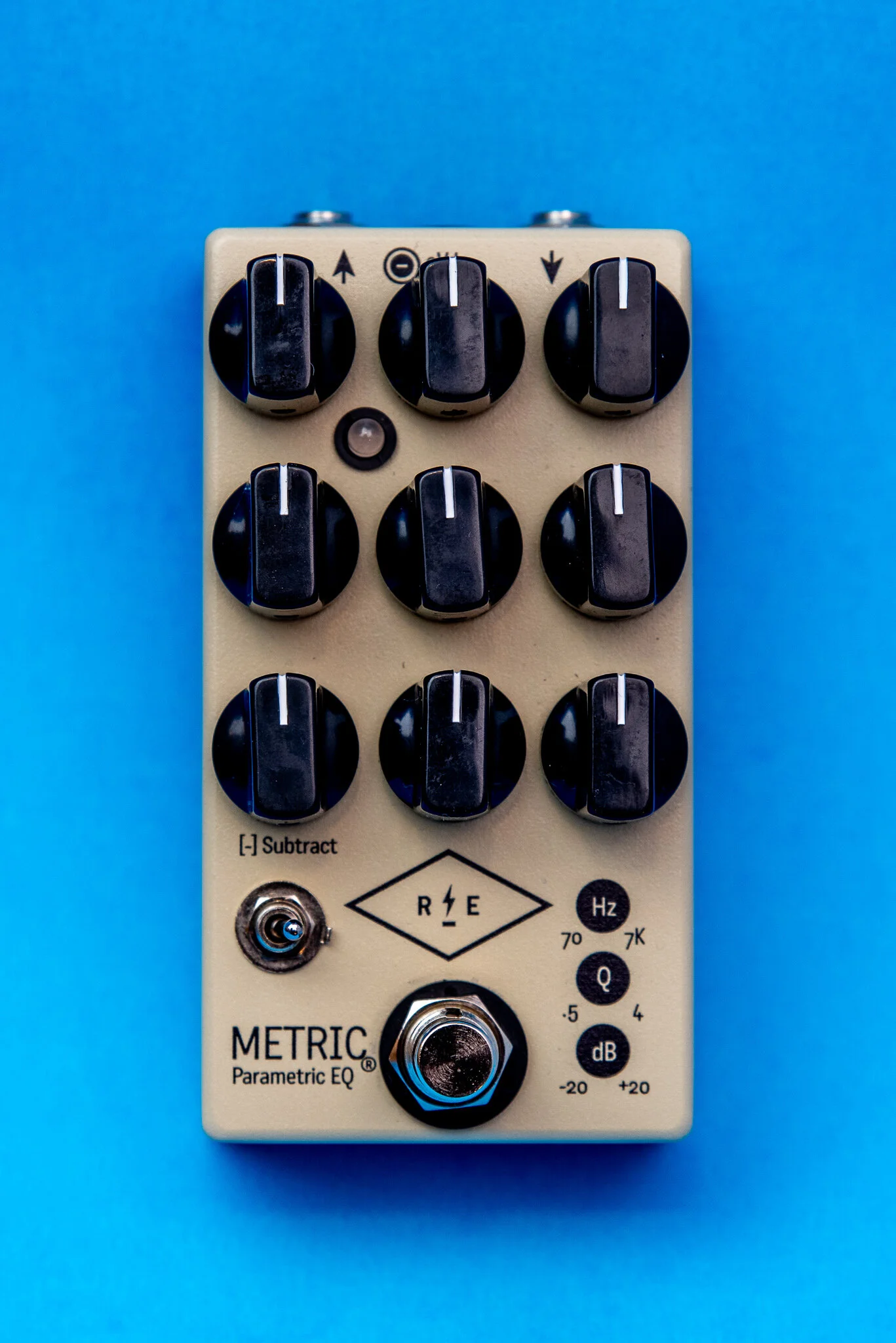

Metric® 3 Band Parametric Equalizer

Info

• 3 independent parametric EQ filters

• Fully Independent Frequency (Hz) Bandwidth (Q), and Gain controls

• Center frequency selection (100:1 range)

• Bandwidth control (0.1 octave to 1.1 octaves, continuously variable)

• Boost/Cut (± 20 dB)

• Ultra High Headroom, +/- 20dB filter gain from 9.6V supply.

• Passband flat, no adverse shelving

• 9.6VDC 200mA (2.1mm Boss Style)

• Noise floor -90dBv Awtg

• T.H.D < 0.001%

• Dynamic Range 107 dB

I/0

• Type Unbalanced 1/4" phone jacks

• Input Impedance 1meg ohms

• Output Impedance 100 ohms

• Level -20dBv instrument level, +4 dBu maximum

Controls

• Center Frequency, Bandwidth, Boost/Cut,

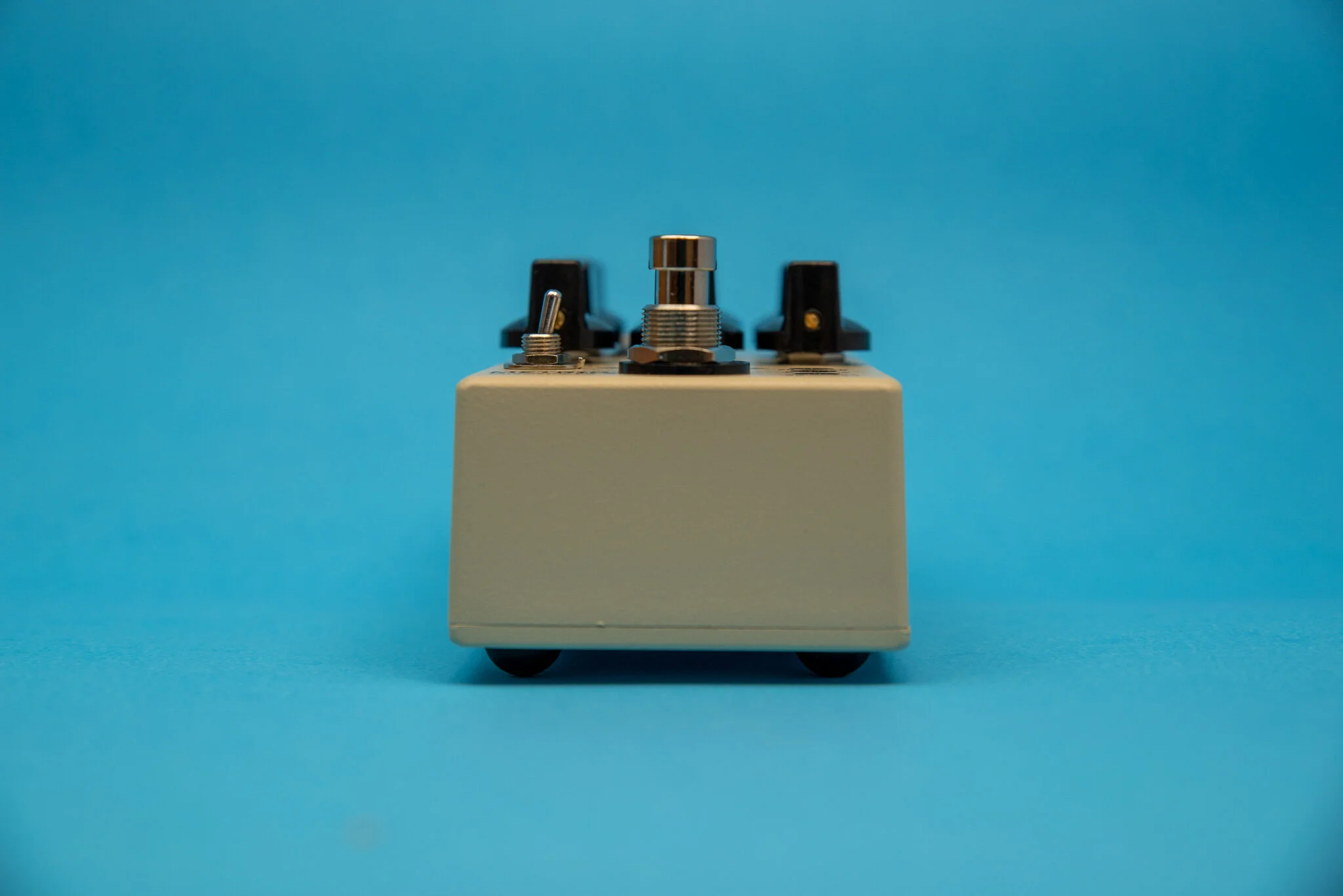

• True Bypass switch

• Subtract switch - removes passband, passes only filtered input signal to output. Simulated inductor/wah effect.

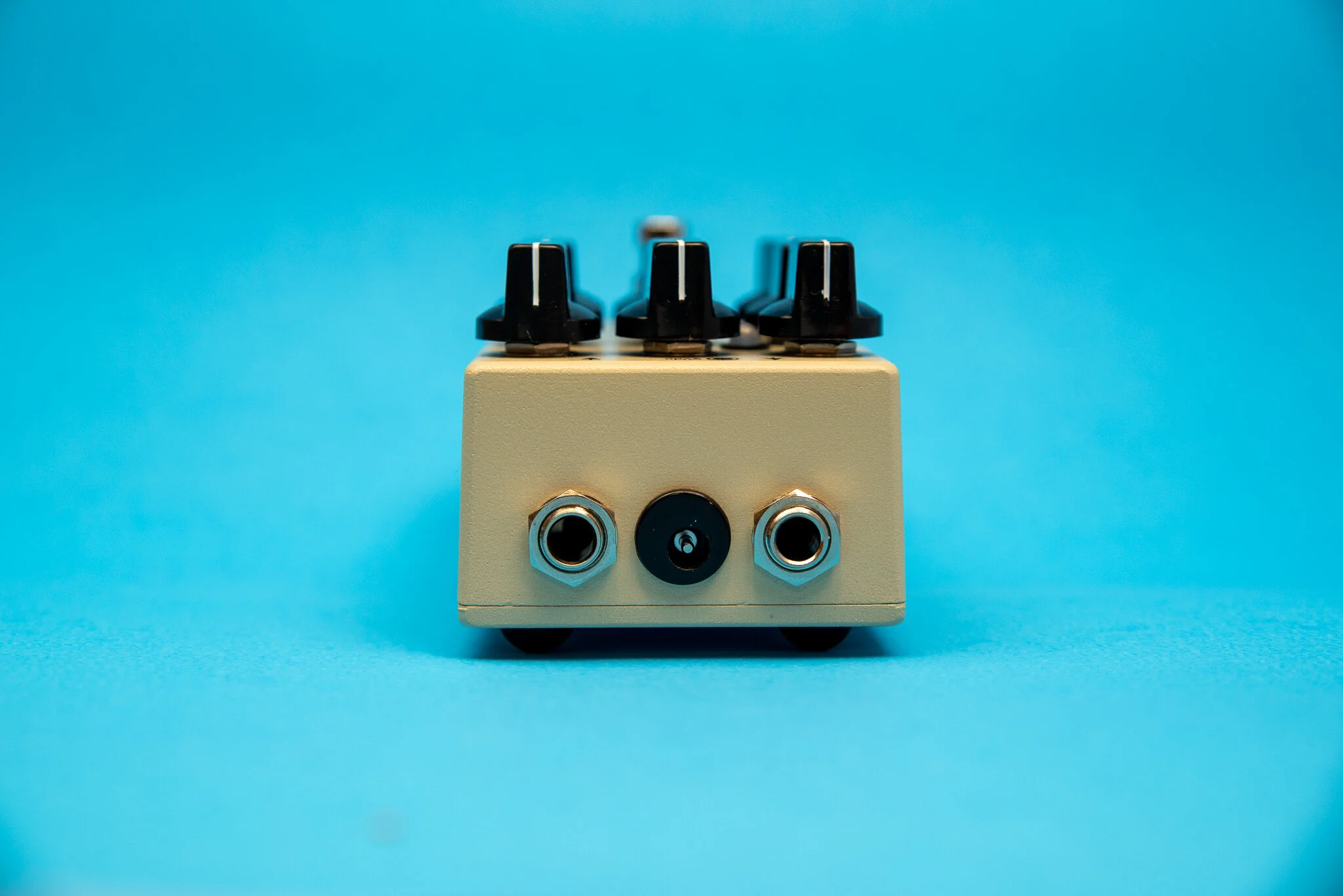

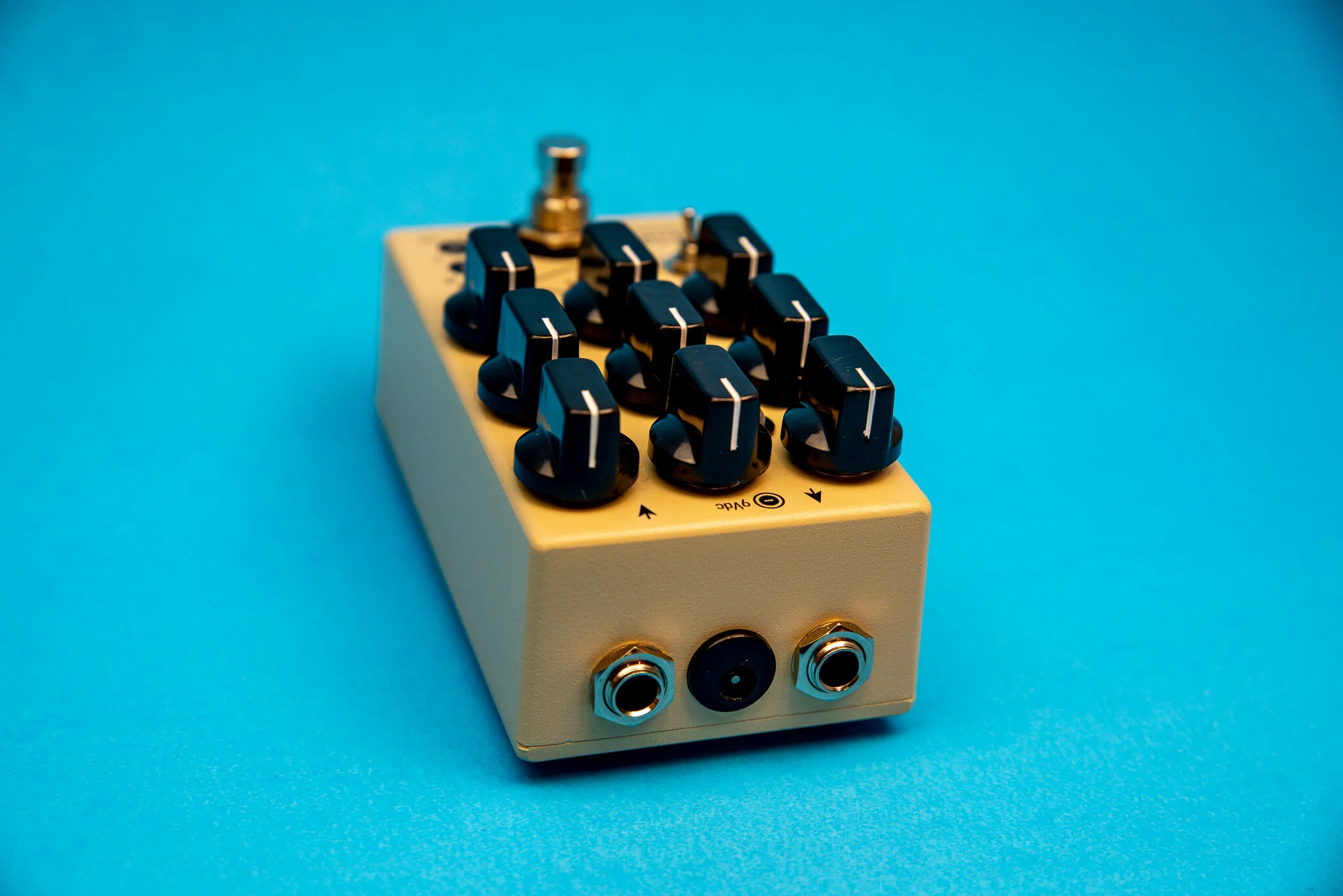

• 1/4" Input/Output Jacks

• 2.1mm DC Jack 9.6vdc 200mA

Physical

• Dimensions 2.5" W x 5" H x 2.5" D (Hammond1590N)

• Weight 1 lbs (0.453592 kg)

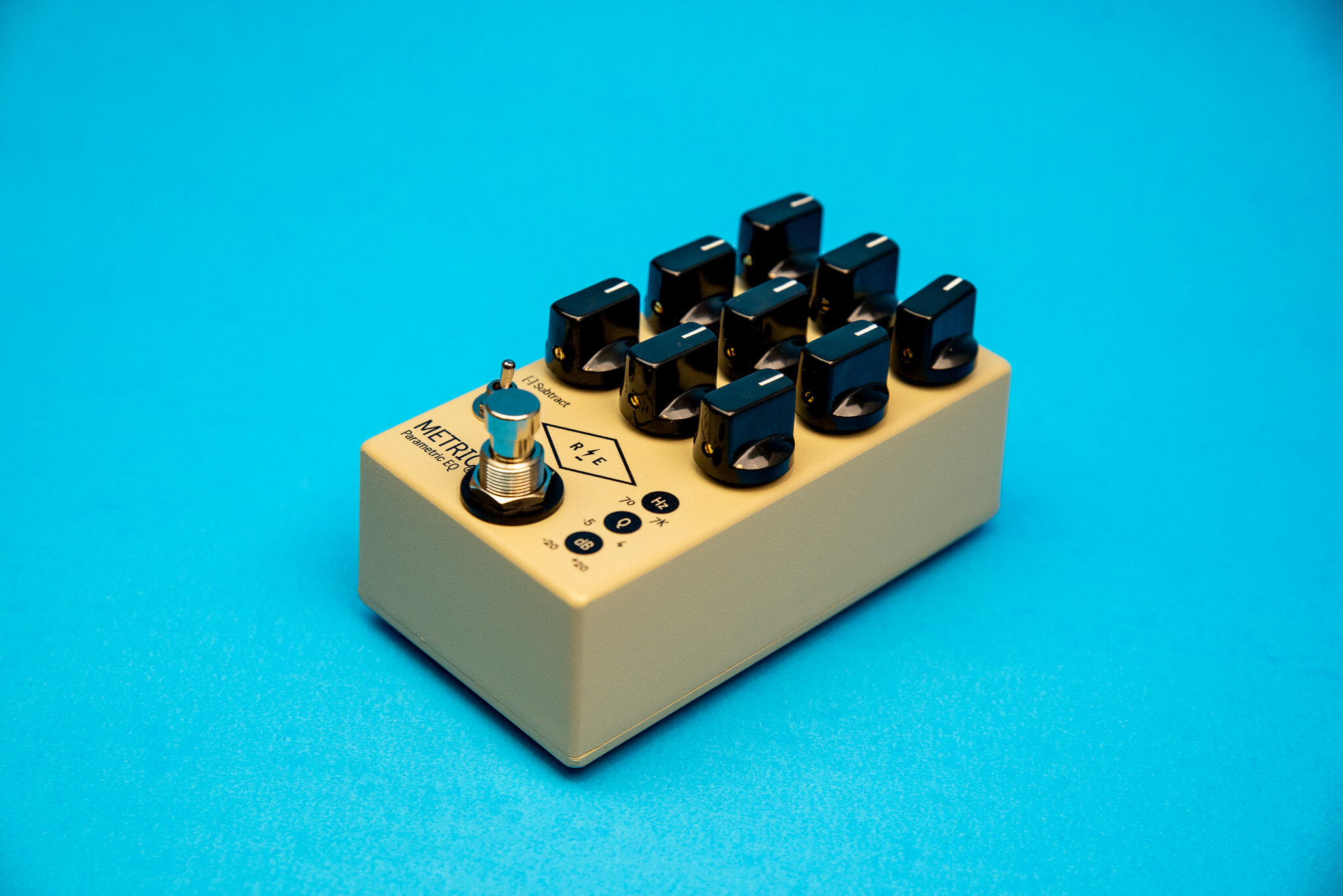

The Revival Electric Metric Parametric Equalizer is a single channel unit, comprising of 3 fully parametric bands of equalization.
